Customer 360

Customer 360 is the identity-resolution and golden-record layer for the LEO CDP platform. The repository combines a PostgreSQL-backed customer graph, a FastAPI read/write API, a Dagster orchestration workspace, and a thin admin frontend that consumes the API.

📖 Documentation site: https://leo-cdp.github.io/leo-customer360/ — every *.md in this repo, rendered and searchable with diagrams, images, and PDFs. Auto-built from main by .github/workflows/deploy-docs.yml.

The code in this repo is not an abstract demo. It reflects a real platform layout with:

  • a PostgreSQL 16 schema for master profiles, raw profiles, links, CRM entities, personas, and segmentation metadata
  • a FastAPI API in customer360-api/ for CRUD, reporting, auth, and tenant-scoped access
  • a Dagster workspace in backend-system/ that runs identity resolution, segmentation, and analytics jobs
  • a FastAPI ad-serving service in ads-server/
  • a browser-based admin UI in frontend-admin/ that calls the API over HTTP
  • local Docker-based startup and demo seeding scripts in the repo root

What is implemented today

The current repo contains four application services, three active Dagster jobs, and six placeholder Dagster jobs.

AreaStatusNotes
backend-system/identity_resolution/ImplementedDagster identity-resolution job; resolves raw profile matches into master profiles
backend-system/segmentation/ImplementedRecomputes active segments and syncs member/tag data back to master profiles
backend-system/analytics/ImplementedHourly Dagster job that aggregates tracking logs and updates source totals
customer360-api/ImplementedMain REST API for identity, CRM, persona, reporting, and metadata
data-tracking-api/ImplementedDurably queues dynamic tracking events in Redis Streams and writes immutable hourly per-source S3/MinIO objects
ads-server/ImplementedMulti-tenant FastAPI ad-serving API with placements, campaigns, creatives, and a browser loader
frontend-admin/ImplementedFastAPI shell for the UI, backed by client-side JS and API requests
backend-system/scoring/, data_synch/, email_engine/, notification_engine/, campaign_activation/, personalization/PlaceholderRunnable Dagster scaffolds ready for their service logic

Repository structure

PathPurpose
database-init/Schema source: database-schema.sql, seed/init scripts, and SQL views
backend-system/Dagster workspace with nine code locations: identity resolution, segmentation, analytics, and six placeholder services
customer360-api/FastAPI service with routers, auth, SQLAlchemy models, and business logic
data-tracking-api/FastAPI ingestion service that queues dynamic events in Redis Streams and writes hourly tracking-log objects to S3/MinIO
ads-server/Standalone FastAPI ad-serving service with its own database, cache, and widget code
frontend-admin/Thin admin UI served by FastAPI and loaded from static templates
all-data-simulator/Synthetic raw data and optional S3/MinIO upload helpers
deployments/Deployment scripts, infrastructure component configuration, and deployment diagrams
k8s/Kubernetes deployment documentation and manifests
postgres/, redis/Custom Docker image setup for PostgreSQL/PostGIS/pgvector and Redis
docs/Architecture, operations, and planning material
ui-wireframes/UI design references
docker-compose.yml, dev-docker-compose.yml, dev-no-sso-docker-compose.ymlProduction-style, local-development, and no-SSO Compose stacks
dev-c360.sh, dev-stop-and-delete-all.sh, manage-c360.sh, run_all_tests.shLocal startup, cleanup, stack management, and consolidated test scripts

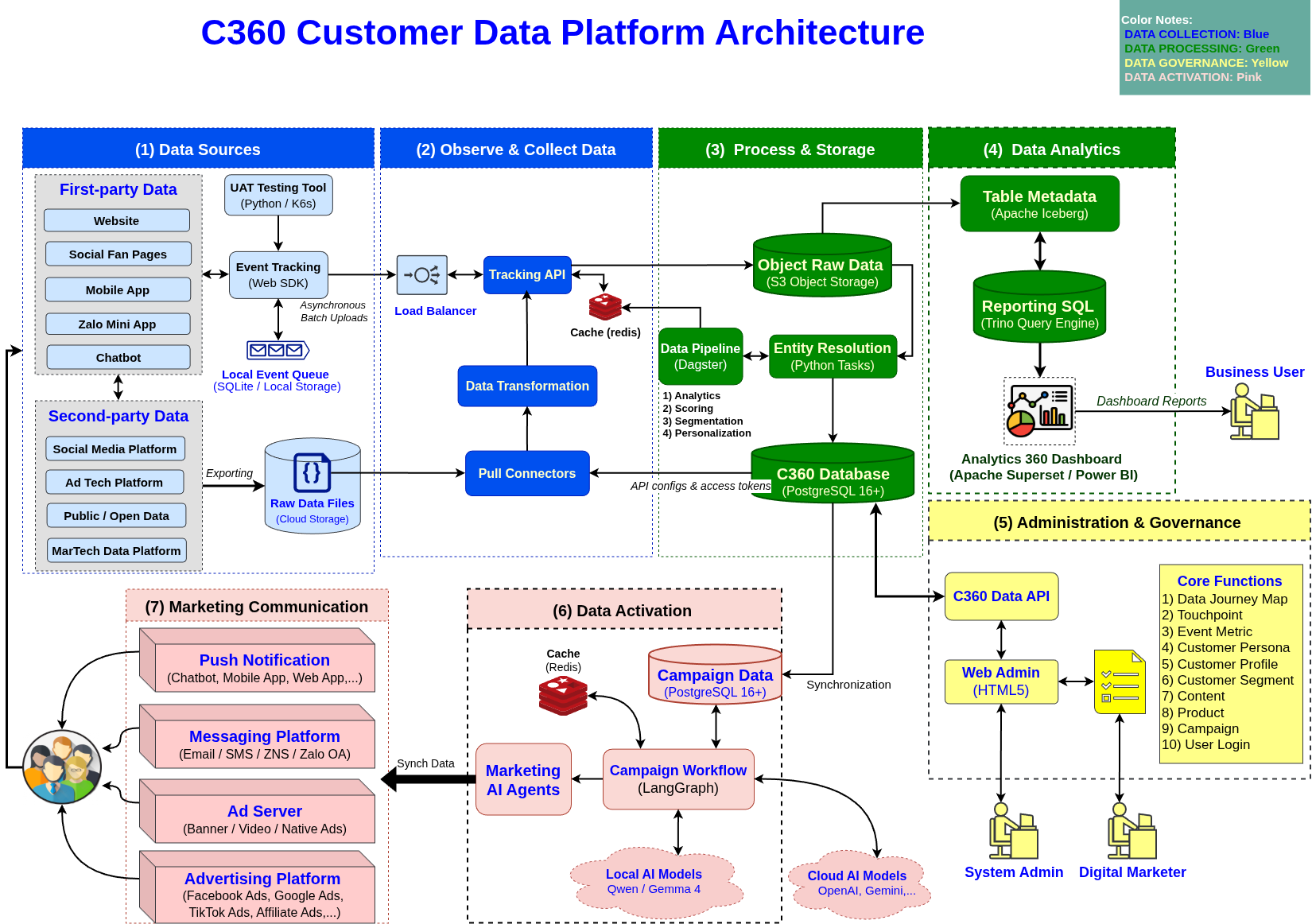

Runtime architecture

The repo runs with the following high-level flow:

  1. Postgres stores the canonical customer360 schema and all operational metadata.
  2. customer360-api exposes the public API and enforces tenant-aware auth via middleware.
  3. The Dagster backend loads nine code locations; identity resolution, segmentation, and analytics are active, while six additional service locations are runnable placeholders.
  4. The data-tracking API stores immutable hourly NDJSON batches in per-source S3 buckets; dev uses the in-network MinIO service.
  5. The admin frontend calls the API directly, without direct database access.
  6. The standalone ads server serves tenant-scoped ad placements and creatives through its API and browser loader.
  7. Local dev and production scripts bootstrap dockerized infrastructure and run the platform as a coherent stack.

Local development quick start

1) Prepare environment

cp .env.example .env

Then edit the values in .env for your local Postgres, Redis, Keycloak, and host ports. The repo includes a full env template and operational notes in the docs.

2) Start the dev stack

./dev-c360.sh

This script starts the infra stack and the MinIO-backed data-tracking API in Docker, then automatically seeds demo data if the database is empty. It is meant for the workflow where Postgres and Redis run in Docker while the main API and backend workers run directly on the host.

3) Run host services

In a separate terminal, start the API and backend workers:

cd customer360-api
./start.sh

cd ../backend-system/identity_resolution
./run-demo.sh

The admin frontend can also be started separately:

cd ../frontend-admin
./start.sh

Production-style stack

For the packaged stack using Docker Compose, run:

./manage-c360.sh start
./manage-c360.sh status

This covers the main production service stack in docker-compose.yml, including Postgres, Redis, Keycloak, Dagster, the Customer 360 API, and the data-tracking API. The dev stack in dev-docker-compose.yml additionally runs MinIO and its initializer. The standalone ads-server/ service has its own startup scripts.

Service entrypoints

The repo uses these primary entrypoints:

  • customer360-api/app.py — FastAPI API entrypoint
  • data-tracking-api/app.py — CDP tracking-log FastAPI entrypoint (port 8010)
  • ads-server/app.py — ad-serving FastAPI entrypoint (port 9009 by default)
  • backend-system/workspace.yaml — Dagster workspace containing all nine backend code locations
  • backend-system/identity_resolution/worker.py — legacy local polling helper; production runs the Dagster job
  • frontend-admin/app.py — admin frontend shell
  • manage-c360.sh — production-style Docker stack manager
  • dev-c360.sh — local dev infrastructure bootstrap

Authentication and tenant context

The API is auth-protected on nearly every route. The current implementation requires a valid bearer token on all non-exempt endpoints, and it resolves tenant/user context from the token or Keycloak-backed auth flow. The code now intentionally rejects header-only login shortcuts, so the runtime behavior matches the current API docs in customer360-api/README.md.

The usual local flow is:

curl -s -X POST http://localhost:8008/api/v1/auth/login \
  -H 'Content-Type: application/json' \
  -d '{"username":"admin","password":"<password from .env>"}'

Then pass the returned access_token as a bearer token in subsequent requests.

Testing

The repo includes a consolidated test runner:

./run_all_tests.sh

This is the current project-level test entrypoint for the Customer 360 API, identity resolution, segmentation, and LEO ad server suites. The data-tracking API also has its own data-tracking-api/run_unit_tests.sh runner.
